Gas screw compressors

Hi there.

One of the our main activities is gas screw compressors.

I have huge experience with:

• gas screw compressors
• natural gas screw compressors
• methane (CH4) gas screw compressors
• biogas screw compressors
• argon screw compressors
• helium screw compressors
• nitrogen screw compressors
• hydrogen screw compressors
• syngas screw compressors
• screw compressors for different gas mixtures
• CO2 recovery
• gas screw compressors for turbine (power generation)
• gas screw compressors for micro turbine (power generation)
• wellhead gas screw compressors

Here you can find unique photos and videos with our projects to help you to find suitable solution for your technical task.

If you need any help in compressors selection, feel free to send request through the contact form on the page

CONTACTS

I will check your request and try to help with advice. Absolutely for free…

Some technical information is placed below.

Technical highlights

• Capacities (free gas delivery) up to 6000 Nm3/h
• Pressures up to 15 bar (210 psi) – 40 bar (580 psi)
• Applications – absolutely all industrial applications, continuous duty 24 hours / 7 days per week
• Motor power up to 750 kW
• product certifications for European / the UK / North American markets

Project examples

Here you can find some information about realized projects.

№1

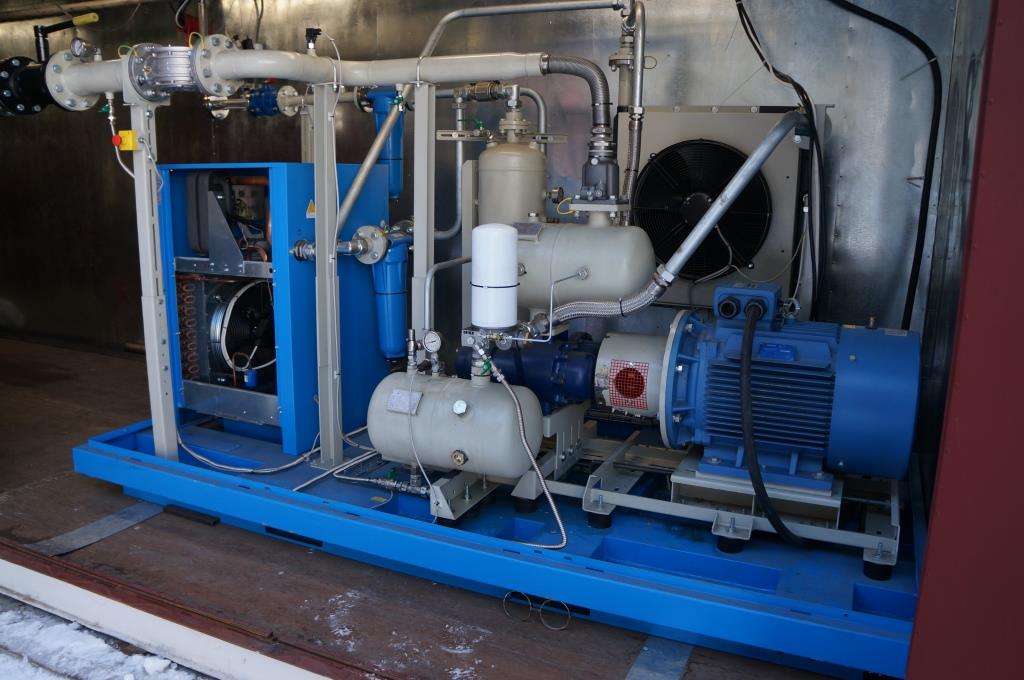

Screw argon compressor for argon circulation.

270 Nm3/h

Inlet pressure is 0.02…0.06 bar g (0.29…0.87 psi)

Outlet pressure is 8 bar g (116 psi)

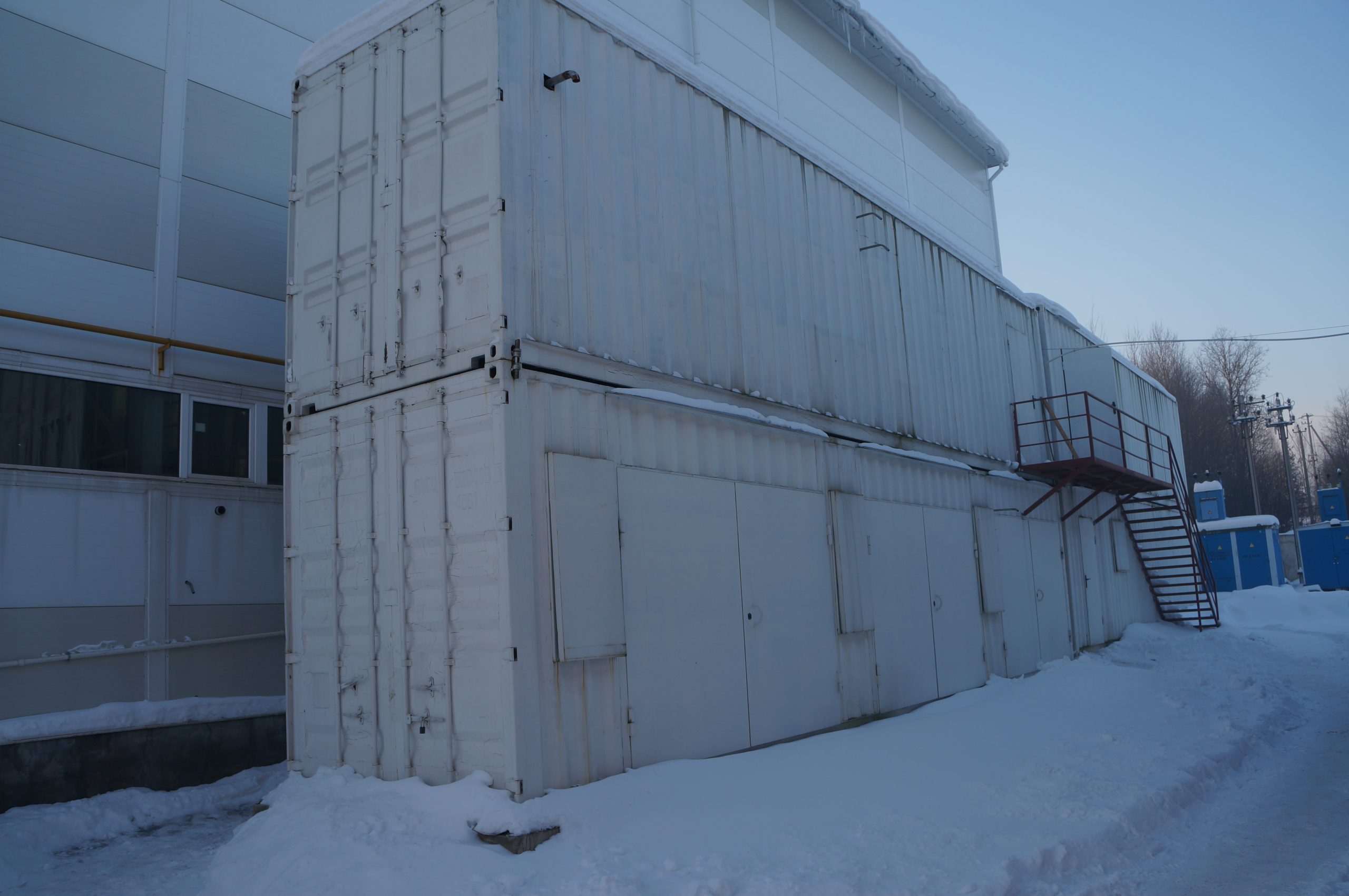

compressor was installed into container:

№2

Gas screw compressor for Methane (CH4)

150 Nm3/h

Outlet pressure is 6 bar g (87 psi)

№3

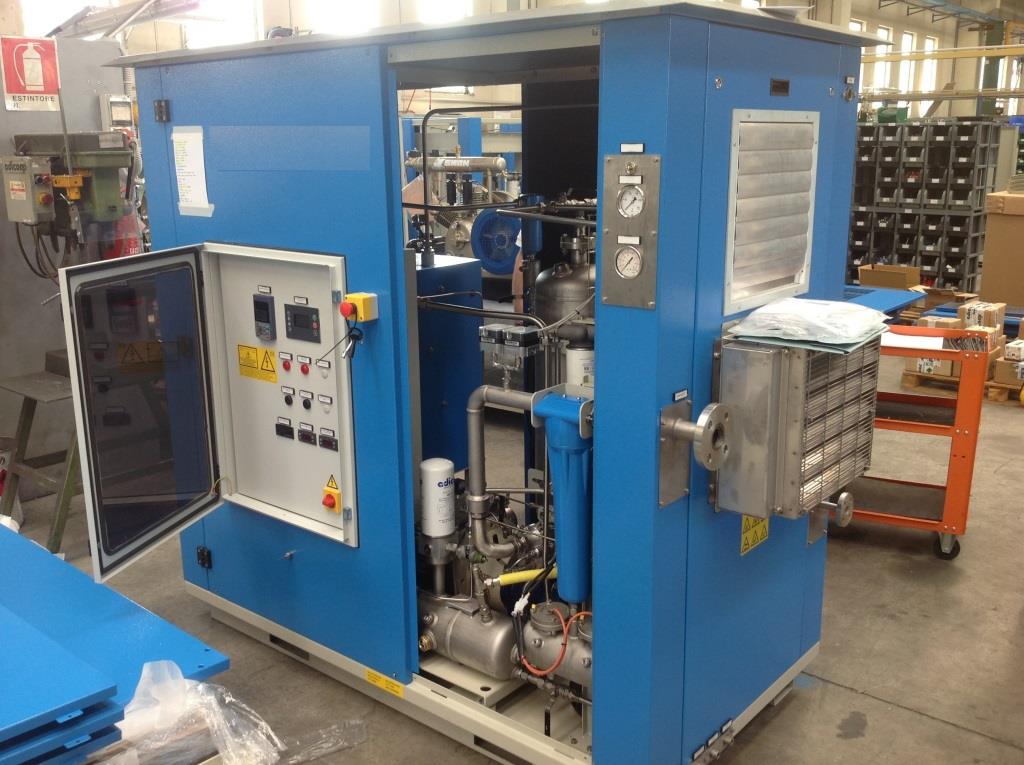

Nitrogen screw compressor / closed design

60 Nm3/h

Outlet pressure is 10 bar g (145 psi)

Find more projects here…

Main parts

The standard parts are included:

• oil injected screw block
• inlet gas filter
• base frame
• gas/oil cooler
• motor
• oil separation system
• gas filters (option)
• all necessary pressure sensors / switches
• oil temperature sensor
• all necessary pipelines/tubes
• wiring box
• control panel

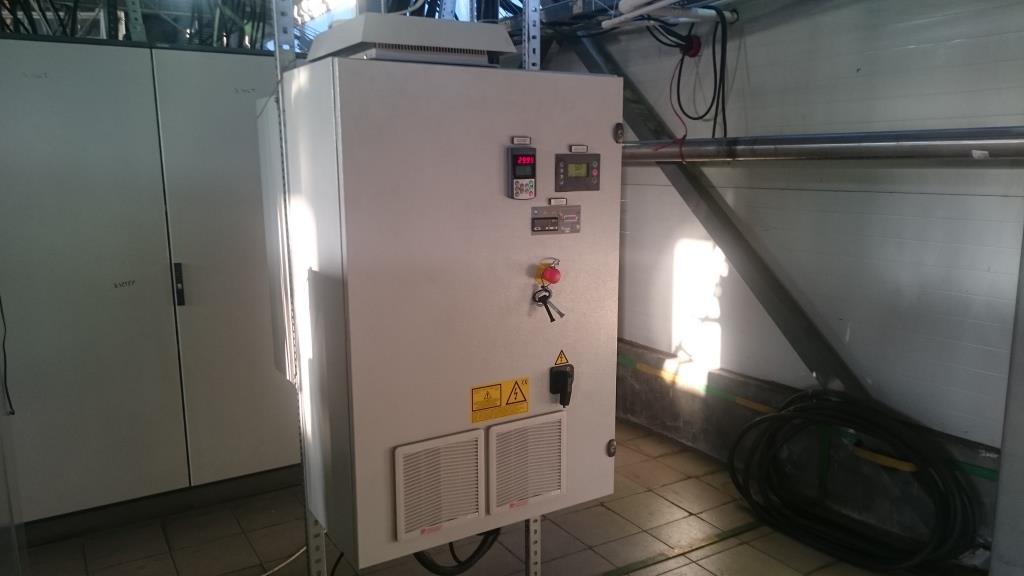

Control panels

All packages are completed with an electric panel (star delta) and all the other auxiliary components for the control adequately  of the various functions.

On the door of such a panel are visible:

• Main switch
• Emergency push button
• Display of electronic panel S1-20

The package is fitted with the following safety devices:

• Over current main motor
• Over current fan motor
• Excessive discharge temperature gas/lubricant
• Excessive high pressure at discharge
• Excessive low pressure at suction

There are also visible:

(on the instrument panel)

• Gas suction pressure
• Lubricant working pressure

 (on the electronic panel display)

• Gas/lubricant discharge temperature
• Gas discharge pressure
• Operating hours
• Maintenance required

That’s all.

I hope everything is clear for you.

I do believe all information is useful for you.

But if you still have any questions or you need some help feel free to leave a comment below. I will answer within a couple of days.

Good luck.

Regards,

Konstantin Shirokikh
